COIL WINDING TECHNOLOGY

Our huge lineup of winding machines gives us the ability to meet every winding requirements, may it be with or without bobbins, of various loops and forms. We can handle any winding project!

We, at NIPHCO, can establish a complete production line for you that is absolutely secure and dedicated to your volume objectives. We have the workplace, engineers, supply chain, and technology to fulfill your requirements.

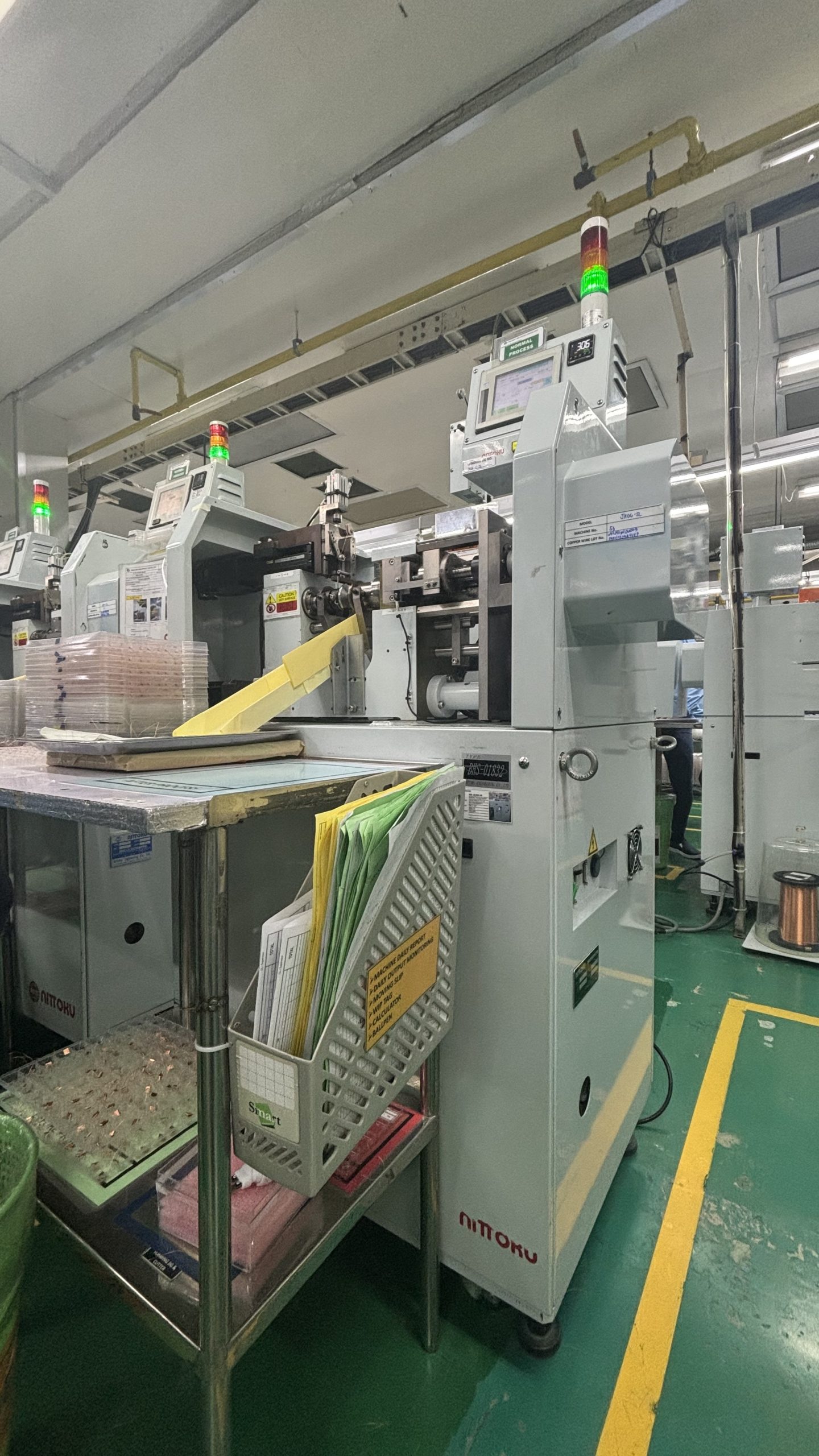

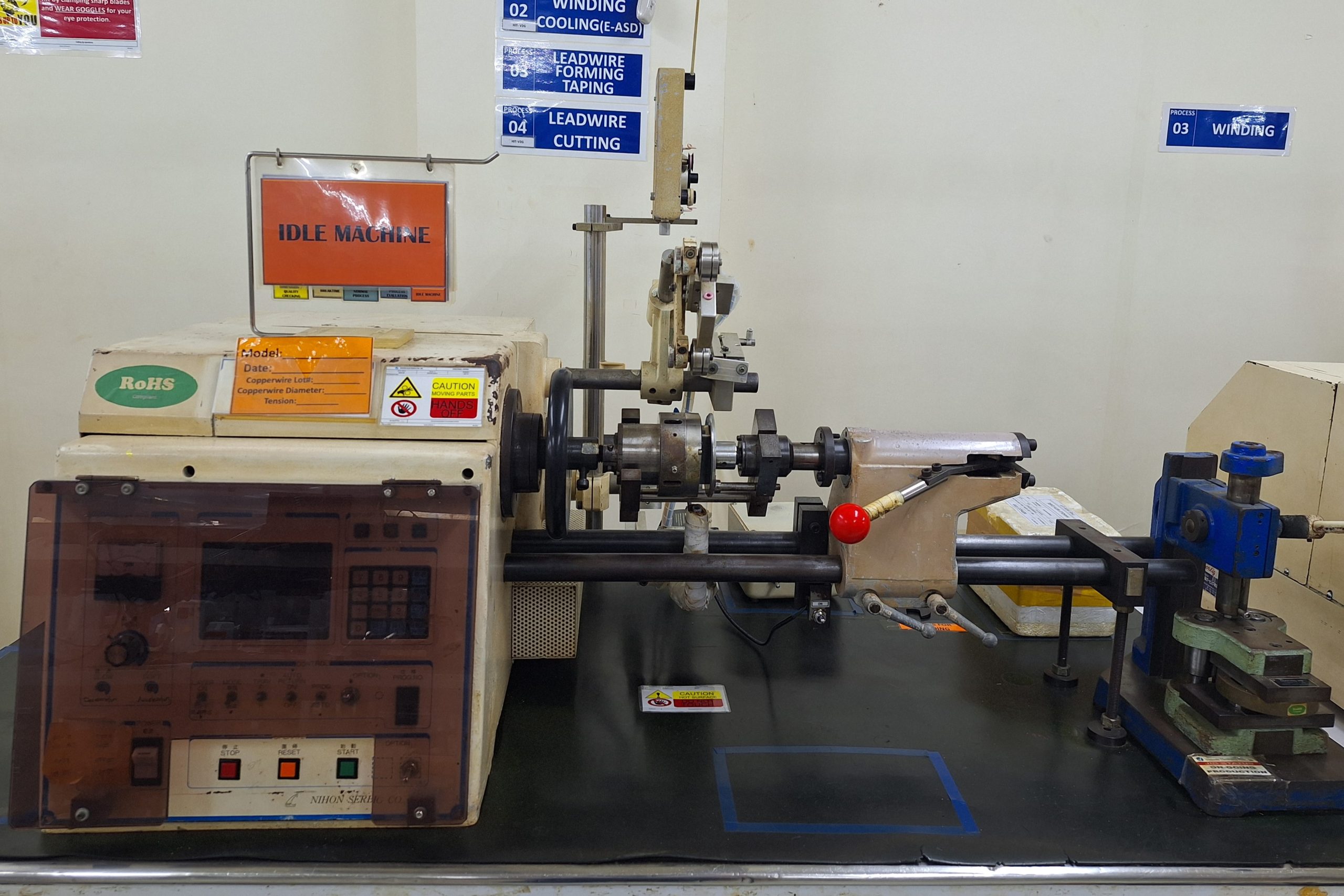

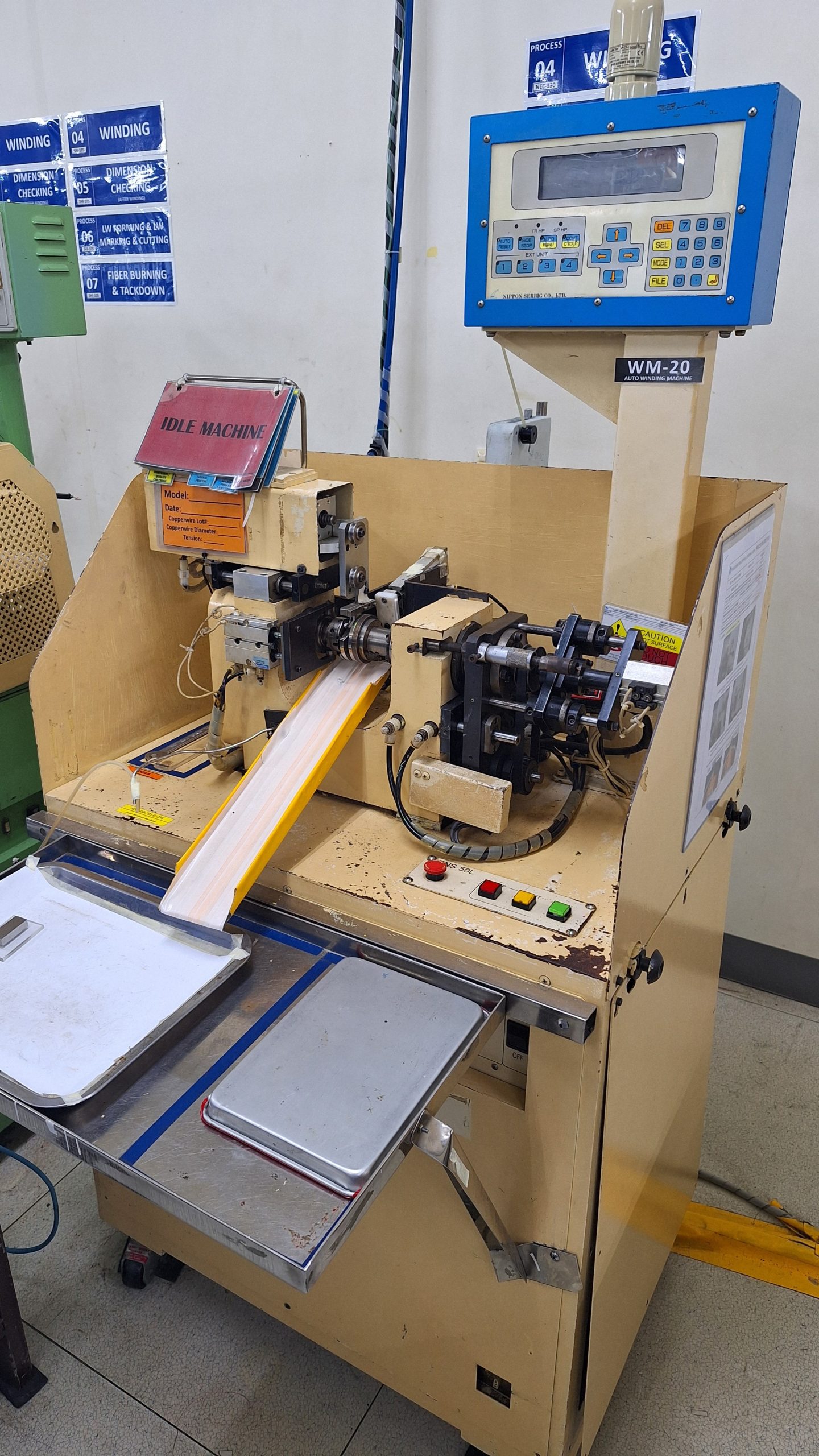

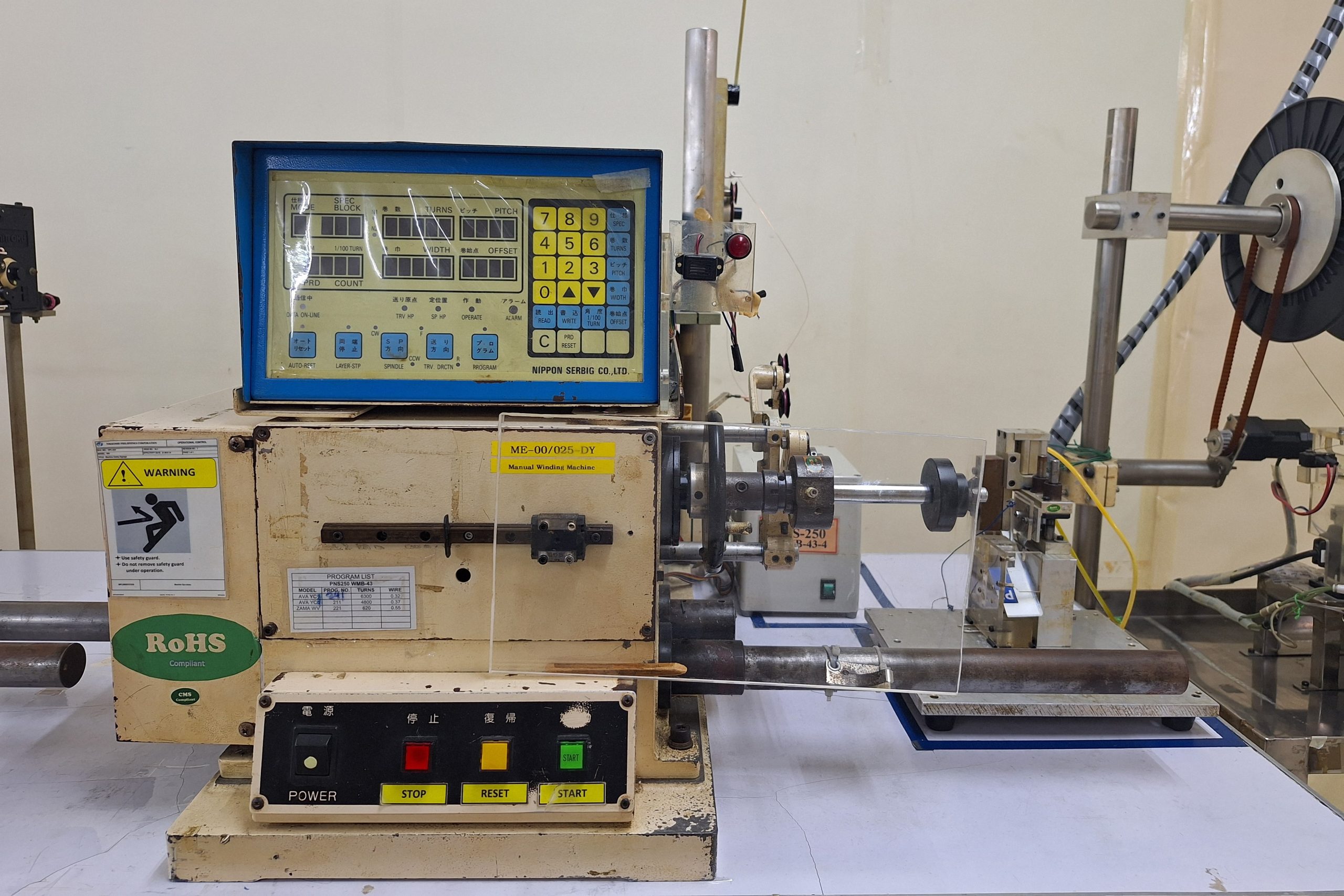

BOBBINLESS COIL WINDING CAPABILITY

We are equipped with precise coil winding machines that are made capable of operating with various types of bobbinless coils. By utilizing a rigid transverse guide, perfect layer coil and consistent winding accuracy can be performed.

Specifications

Wire Diameter Range: 0.05mm – 0.6mm
Winding Diameter: Up to 40mm
Winding Width: Up to 20mm

Specifications

Wire Diameter Range: 0.05mm – 0.25mm
Winding Diameter: Up to 32mm
Winding Width: Up to 8mm

Specifications

Wire Diameter Range: 0.1mm – 2mm
Winding Diameter: Up to 120mm
Winding Width: Up to 100mm

Specifications

Wire Diameter Range: 0.05mm – 0.25mm
Winding Diameter: Up to 32mm
Winding Width: Up to 8mm

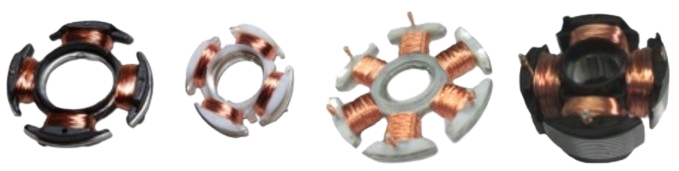

BOBBIN-TYPE COIL WINDING CAPABILITY

We offer high performance, completely automatic winding machines that are ideal for winding bobbin-type coils. These machines are powered by dependable AC servomotors, NSC controllers, and winding software.

Semi-automatic
Wire Diameter Range:
0.05mm – 0.2mm

Fully Automatic
Wire Diameter Range:
0.05mm – 0.2mm

Semi-automatic (w/ wire twisting)
WIRE DIAMETER RANGE:
0.05mm – 0.2mm

Semi-automatic
Wire Diameter Range:
0.05mm – 0.9mm

Fully Automatic (Flyer Type)
Wire Diameter Range:
0.35mm

TOROIDAL COIL WINDING CAPABILITY

We can produce linear and circular toroidal coil with high reliability and accuracy by using digital controller and consoles.

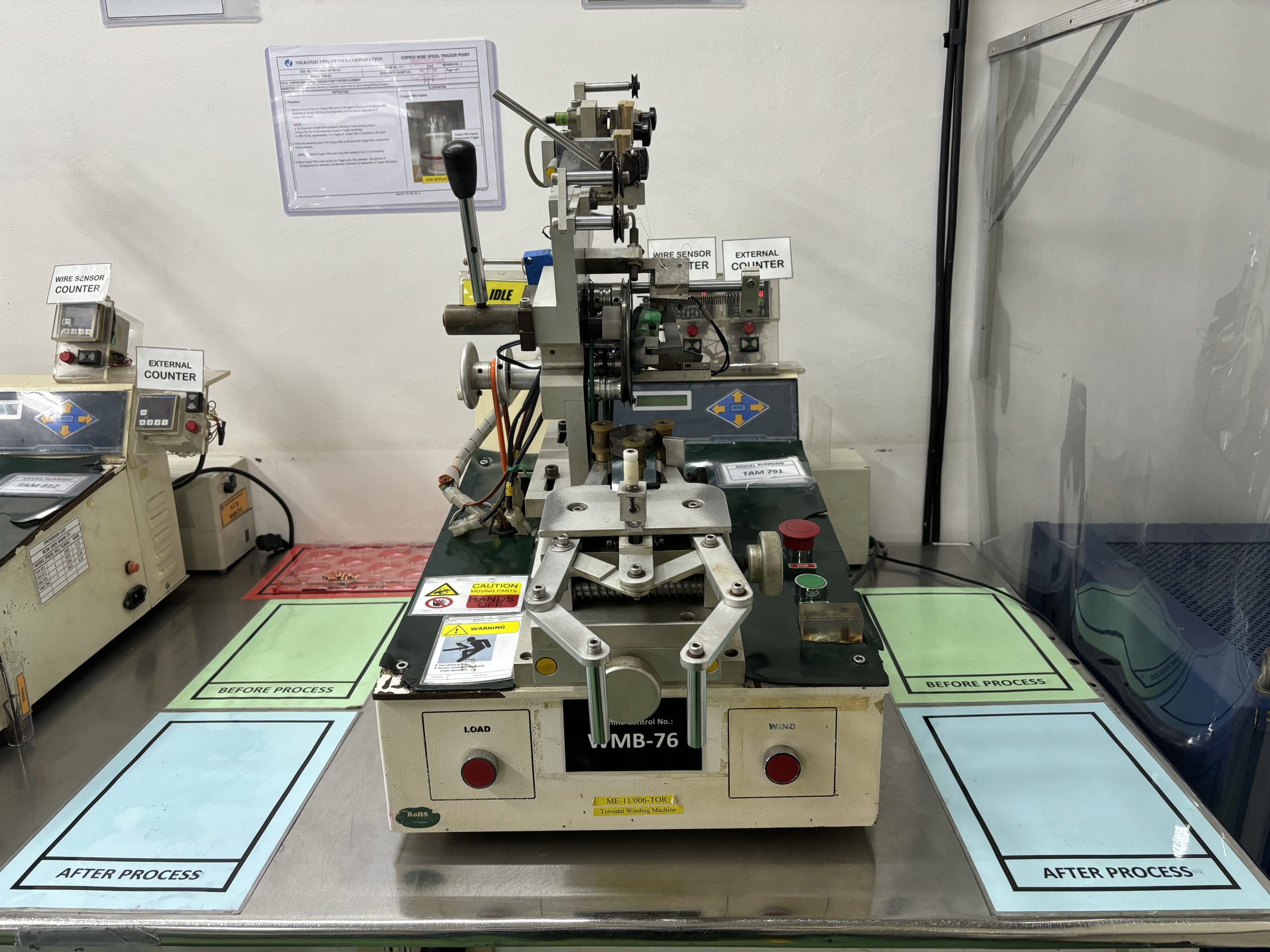

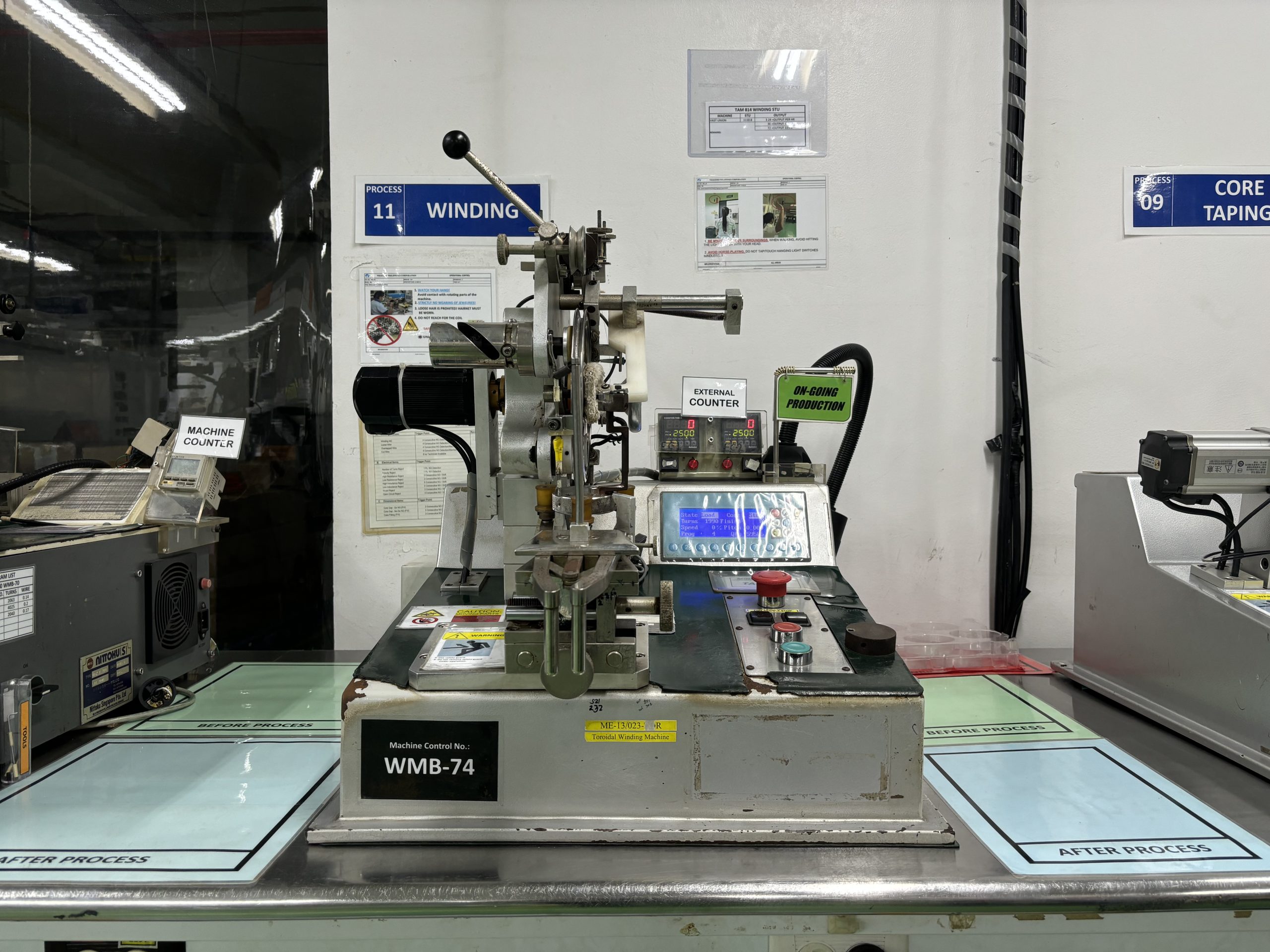

Toroidal Coil Winder

Slider Type, Table Top
Wire Diameter Range: 0.05mm – 1mm
Finished Coil Inner Diameter: 8mm
Finished Coil Outer Diameter: UP TO 45mm

Toroidal Coil Winder

Table Top
Wire Diameter Range: 0.05mm – 1mm
Finished Coil Inner Diameter: 1.5mm
Finished Coil Outer Diameter: UP TO 70mm
